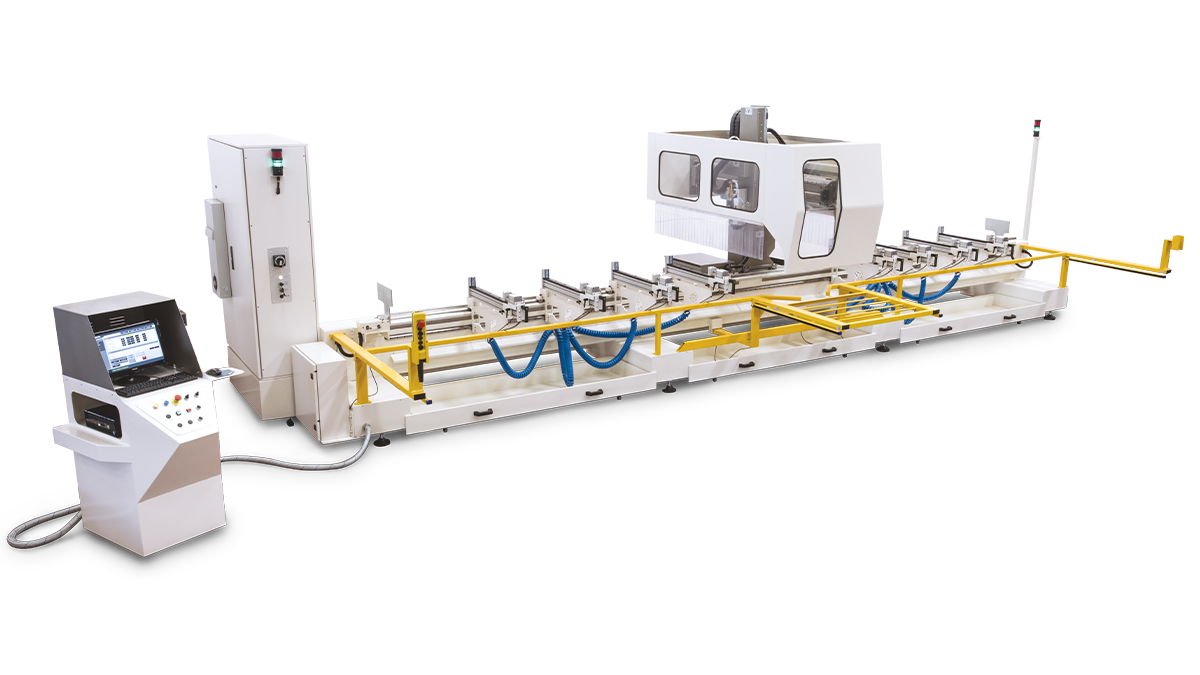

MC 304 Atlas 4A DPM
MC 304 Atlas 4A DPM
Download the brochureDownload the brochure
Request a quoteDownload the brochure
Details
Multipurpose and efficient 4-axis machining center, suitable for the window and door industry as well as general industrial applications, thanks to its extensive Y-axis working capacity.
Number of axes
  • 4 Axis
Processable materials
  • Aluminium
DPM Clamps, clamp positioning device

DPM Clamps, clamp positioning device

The DPM system ensures automatic positioning of the clamps, one after another, improving the efficiency of work cycles and increasing productivity.

Double loading and working area.

The possibility of creating two separate working areas allows for simultaneous or diversified operations, optimizing space usage and increasing productivity: this is the pendulum mode. Alternatively, the overall machine length can be used to process particularly long profiles.

Double loading and working area.
Accuracy integrated into the process.

Accuracy integrated into the process.

The main axes slide on high-precision linear guides and are driven by brushless servomotors, ensuring accurate and stable movements. The clamping units provide secure and precise workpiece fixing. Features an ISO30 6kW electrospindle or an optional HSK-F63 8.5kW version, available with or without encoder.

Ensured Safety

Protective cabin and light curtains ensure a safe working environment, reducing risks and maintenance costs.

Ensured Safety
User friendly software.

User friendly software.

The easy and intuitive CadCam3D software allows for rapid programming and execution. The optional Cadlink program enables the import of STEP and IGES files from 3D design software, ensuring fast workpiece execution.

Fiber optic fieldbus.

Digital technology and data transmission via fiber optics ensure high performance with reduced interference and maximum reliability.

Fiber optic fieldbus.
Advantages

  • Operational flexibility. The 4 CNC-controlled axes allow for a wide range of complex machining operations. The A-axis enables spindle positioning at any angle within ±91°, offering greater adaptability to various production processes.

  • Clamping safety and quality. The workpiece clamping units slide on precision guides, ensuring secure fastening and improving machining quality.

  • Energy efficiency and maintenance reduction. The automatic lubrication of guides and ball screws, combined with tool cooling via a minimum quantity lubrication (MQL) unit, optimizes consumption and reduces maintenance costs.

  • Workspace optimization. The division of the working area into two independent zones allows for the simultaneous loading and execution of multiple workpieces in pendulum mode, increasing production efficiency. The full machine length can be utilized to process particularly long profiles.

  • MES interfacing with various standards, including OPC UA for Industry 4.0. Optional hardware for dynamic energy monitoring for Industry 5.0 transition. Remote component diagnostics via Mecal VPN router for Industrial IoT.

  • Wide range of options. Optional remote control pendant, barcode reader, angular heads, tool presetter, multi-directional probe, one or two aggregate magazines, interface with external software, Cadlink for importing 3D STEP or IGES files.

  • Traditional Mecal Product Robustness – Technology and Innovation. Top-tier technological partners and suppliers for mechanical, electrical, electronic, and pneumatic components. All this, combined with the high level of technology and innovation in Mecal’s in-house automation, guarantees the quality and innovation of the final product.
Features

Technical specifications

Download the brochure Download the brochure

4-axis CNC machining centre dedicated to processing aluminium, light alloys, and steel profiles. It allows for the execution of up to 4 workpieces in pendulum mode across two distinct working areas. It features 8 standard clamps, automatically positioned in sequence by the DPM device attached to the head, ensuring automatic machine setup. The electrospindle rotates +/- 91° on the A-axis for inclined machining. It is equipped with an 8-position tool magazine located directly on the X-axis carriage. It is particularly valued for the clamp structure which significantly facilitates profile loading, as the operator can ‘step into the clamps’ during the loading and unloading phase.

GENERAL SPECIFICATIONS
Electrical power supply400 V - 50/60 Hz – 3 ~ + N + PE
Total installed power14,5 kW (17 kW)
Electrospindle
Power6 kW8,5 kW
Max. speed18000 rpm24000 rpm
Tool-holder couplingISO 30HSK F63
CoolingAir
Compressed air supply7 bar
Air consumption
Machine330 Nl/min
Tool cooler (option)425 Nl/min (for unit)
Noise emission
Equivalent continuous sound level (Leq)79 dB(A)
Tool magazine
TypeLinear to deposit / extraction (on board head)Fixed
(optional)
Aggregate/tool no.7 + 12 aggregate
Basic tool characteristics
Tool holders (standard)ER 25
Cylindrical cutter max. length150 mm
Disk cutter max. diameter150 mm
Total weight of machine5300 / 6300 / 7300
AXIS DATA SpeedLenght
X axis80 m/min 7460/9460/11460 mm
Y axis65 m/min 1460 mm
Z axis40 m/min 620 mm
