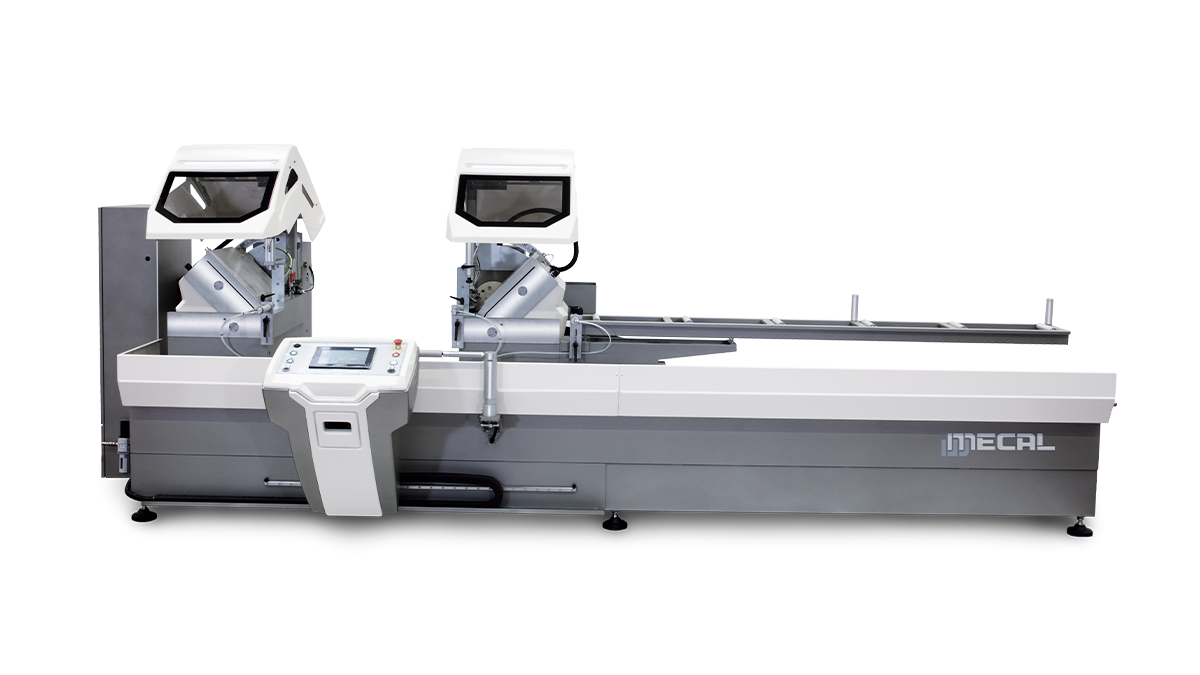

SW 453 Argus
SW 453 Argus
Download the brochureDownload the brochure
Request a quoteDownload the brochure
Details
Maximum cutting precision and versatility, 500mm blade with external pneumatic tilting. Featuring 1-axis CNC automation and advanced software with 10” touchscreen IPC. Reduced setup times and increased productivity.
Number of axes
  • 1 Axis
Processable materials
  • Pvc
  • Aluminium
Customized angles with maximum precision

Customized angles with maximum precision

Thanks to automatic pneumatic positioning on hard stops, the cutting units tilt with precision and repeatability. Tilting range: 22.5° – 45° – 90°; intermediate angles are achieved by manually adjusting a mechanical stop.

1-axis automation, guaranteed precision.

The 1-axis CNC system allows for automatic positioning of the mobile unit, while the automatic tilting is pneumatic, optimizing every operation and minimizing operator intervention. Maximum automation in step-by-step cycles, with an optional perimeter fence and light curtain.

1-axis automation, guaranteed precision.
Advanced control, top-tier performance.

Advanced control, top-tier performance.

The advanced software features automatic cutting list management, DXF import, process optimization, and remote diagnostics, enhancing efficiency and productivity. One-click database population and seamless interfacing with all market-leading software.

Schneider Harmony IPC, 10" capacitive touch screen.

The large and responsive capacitive touch screen display for industrial applications is separable from the CPU and replaceable. Optional label printer, digital caliper, and a standard intermediate support are included.

Schneider Harmony IPC, 10
All cutting cycles included as standard.

All cutting cycles included as standard.

All cutting cycles are included as standard: two-blade, under-minimum, ultra-short (including 0mm center distance at 45°-90°), and over-maximum length. Step-by-step cutting is standard at all angles, even for 45°-90° final pieces. Trimming cut (spuntato) is also included as standard.

Smooth feeding, flawless cuts.

Head and tail processing unit for milling, tapping, and end-milling on the workpiece extremities, featuring X, Y, and Z axes and A-axis rotation.

Smooth feeding, flawless cuts.
Advantages

  • NC automation for X-axis positioning and pneumatic tilt control for the cutting units ensure high productivity, flexibility, repeatability, and speed in complex tasks. The electro-welded base offers maximum structural rigidity, reducing vibrations and ensuring consistent, high-quality cuts even during heavy-duty operations. The front-exit, rectilinear oleo-pneumatic blade feed, with adjustable speed and depth, ensures maximum precision tailored to specific cutting needs.

  • High-quality Ø 500 mm blades ensure superior cutting capacity, perfect for large-scale profiles.

  • Wide Axis Travel. The X-axis has a working cutting length from 400mm to 4000mm, with 5000mm and 6000mm options available. Tilting angles 22.5° – 45° – 90°

  • Access with multiple password levels. The operator has limited access restricted to production tasks, while the department manager has broader access privileges. The highest levels are reserved for Mecal technicians.

  • Mecal’s Signature Product Robustness – Technology and Innovation. Top-tier technological partners and suppliers for mechanical, electrical, electronic, and pneumatic components. This, combined with the high level of technology and innovation in Mecal’s in-house factory automation, guarantees the quality and innovation of the final product.

  • MES interfacing with various standards, including OPC UA for Industry 4.0. Optional hardware for dynamic energy monitoring for Industry 5.0 transition. Optional remote component diagnostics via Mecal VPN router for Industrial IoT.
Features

Technical specifications

Download the brochure Download the brochure

The SW 453 Argus is a double-head mitre saw with 1 CNC axis, external pneumatic tilting, Ø 500 mm saw blades, a 4000mm useful cutting length, and a 10” Touch Screen HMI, for precise and repeatable cuts.

GENERAL SPECIFICATIONS
Electrical power supply400 V - 50 Hz - 3 ~ + N + PE
Max. total electric power (kW)5,5 (9,5)
Numerical control
TypeIPC (Industrial PC)
Monitor10” touch screen
Blade motor characteristics
Power (kW)2 x 2,2
Max. revolutions (rpm)2780
Pneumatic supply (bar)7
Air consumption
Machine (NI/cycle)39
Blade standard cooling (NI/min)100
Noise emission
Equivalent sound level (Leq) dB(A)99,1
Standardised sound power level dB(A)118,8
Blade characteristics
outer Ø (mm)500
inner Ø (mm)30
Body thickness (mm)3,2
Tooth thickness (mm)4,0
Tooth no.120
Cutting angles
Inclination (°)22,5 ÷ 90
Standard cut length max. c/c distance
Contemporary cut (mm)4000/5000/6000
Over size cut (mm)It is possible to cut profiles with a length greater than the max. c/c distance value of the machine. The feasibility of these cuts must be specifically studied by the technical department of MECAL Technical Service.
Standard cut length min. c/c distance
Contemporary cut (mm)400
Under size cut (mm)260 ÷ 400
Ultra short cut (mm)0 ÷ 260
Total weight
Machine (kg)1850 / 1950 / 2050
